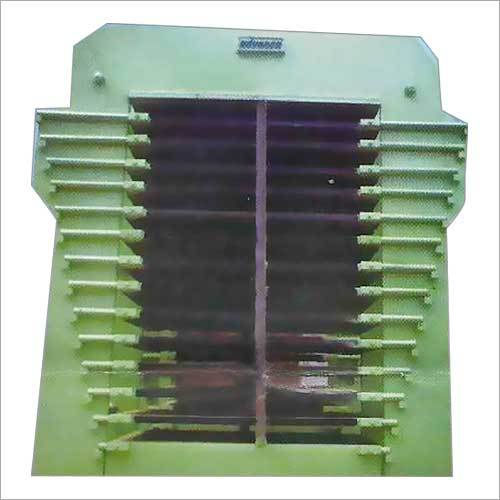

Hydraulic Ring Frame Press

Hydraulic Ring Frame Press
Hydraulic Ring Frame Press
Product Code : 08
Product Description

Since our inception in the year 2003, we are manufacturing and exporting a supreme quality range of  Hydraulic Ring Frame Press. Our experts manufacture this press at our advanced manufacturing unit using premium quality components. With a view to meet the specific requirements of the clients, it is made available in different specifications. Used to mold big o-ring, provided press is also tested on several parameters to ensure its high performance at client's end. Offered Hydraulic Ring Frame Press can be availed at affordable prices.



Features:

  • Low power consumption

  • Rugged construction

  • Easy operations

  • High speed functionality

Specifications:

Size of Plate

1000mm x 600mm
1000mm x 1200mm

Size of frame

3050 x 1525 x 600mm
3050 x 1525 x 1200mm

Thickness of Frame/Base

25mm

Gap between Plates

90mm/100mm

Number of Hydraulic cylinder

Two

Bore of Hydraulic Cylinder

254mm/300mm

Pump

Gear and Plunger Pump

Working Pressure

Up to 150Kg/Cm2

Oil Tank Capacity

300 or 500lirs.

Moter H.P

5 or 10 H.P
